No Fire Paint – Intumescent Fire-Resistant Coating

To ensure the effectiveness of these paints, the use of correct application methods is of great importance. Proper surface preparation, the application of a primer, and achieving the required coating thickness directly impact performance. Furthermore, fire-resistant paints are manufactured in different classes, each offering varying levels of heat resistance. Therefore, it is essential to conduct a risk analysis of the intended area to select the appropriate product. With advancing technology, some types of fire-resistant paints now offer diverse color and texture options from an aesthetic standpoint, providing both safety and decorative solutions.

Intumescent Fire-Resistant Paint - No Fire Paint

Dryfix NO-FIRE PAINT is a single-component, water-based, air-drying coating optimized for fire protection. It is specifically formulated to protect structures from fire. During a fire, it delays the ignition of surfaces by flames and heat, effectively slowing the spread of fire. This extends the time available for escape and evacuation during a fire, allowing the building to be cleared safely.

Product Features

• Fire-retardant properties; non-flammable and slow-heating paint.
• Provides excellent surface compatibility with high bonding strength.
• Demonstrates superior adhesion performance on applied surfaces.
• Does not cause issues such as peeling, blistering, or cracking.
• Prevents the spread of flames under direct contact.
• Absorbs flames, preventing the fire from spreading further.
• Offers high resistance against fire.
• Due to its paint form, it can reach even the finest details of the applied surface.
• Provides a high degree of fire resistance through a seamless application.

Areas of Application

Preferred in hotels, hospitals, educational buildings, industrial facilities, and public spaces to support fire safety requirements.

• Can be used effectively in both interior and exterior areas of buildings.
• A suitable coating material for various building types.
• Can be applied safely in restaurants, kitchens, and on roofs.
• When applied to areas such as fire escapes and emergency exit corridors, it provides a higher fire resistance performance compared to standard paints.

Application Instructions

Before applying the product, the surface must be prepared mechanically using scrapers and abrasive machines. For the removal of substances such as oil, powerful cleaning agents and pressurized water can be used to eliminate residues.

Primer Application

For Plaster or Gypsum Surfaces: Dryfix Binder 100 Primer must be used. For Other Surfaces: Please consult our technical support line for the appropriate primer selection.

Application Details

• Application method: Airless spray machine or brush.
• Thinner: Max 3% water may be added.
• Airless nozzle size: 0.017″ – 0.023″
• Airless nozzle pressure: 200 bar [2900 psi]
• Surface temperature: +5°C to +35°C
• Relative humidity: < 80%

Note: The paint film thickness must be applied uniformly across the entire surface.

Important Notes / Important Information

• Thickness measurements specified in the project must be verified using dry film thickness gauges.
• If the required thickness is not achieved according to the performance table, the insufficient areas must be marked and re-coated.
• Pay close attention to primer application.
• Deficiencies in the primer prevent the steel from being sealed against airflow, which creates a risk of oxidation (corrosion).
• After the application is complete, protect the surface from rain, water, mechanical loads, and impacts for 24 hours.
• Never allow water to stand on the paint for long periods; prevent water pooling.
• Ensure adequate ventilation during application.
• Clean all tools and equipment with clean water immediately after use.

Product Performance, Quality, and Measurement Standards

• TS EN 13501-1: A European testing standard that provides fire classification for construction products and building elements.
• ASTM E 119: An American testing standard used to determine the fire resistance rating of building elements.

Product performance is determined within the scope of the relevant testing standards and may vary depending on the application thickness, surface type, and system details. For project-specific technical assessment, it is recommended to contact the Dryfix technical team.

Technical Specifications

• Density (25°C, g/mL): 1.40 ± 0.10
• pH (25°C): 7.0 – 9.0
• Viscosity (25°C, mPa.s): 10,000 – 12,000
• Solid Content (Volume %): 70 ± 2
• Solid Content (Weight %): 60 ± 2
• Water transmission rate (kg/m².h⁰⁵): < 0.1 CLASS W3
• Adhesion strength (N/mm²): ≥ 0.8
• Water vapor permeability (m): 5 ≤ SD ≤ 50 CLASS I
• Solvent: Water
• Color: Available in all desired colors
• CONSUMPTION: Varies depending on the required performance specified in the project.
• Packaging Type: 18 kg PE pail
• Shelf Life: 12 months
• Storage Conditions: Store in a cool, dry environment in the original packaging.
• Color: Standard white (can be produced in desired colors)

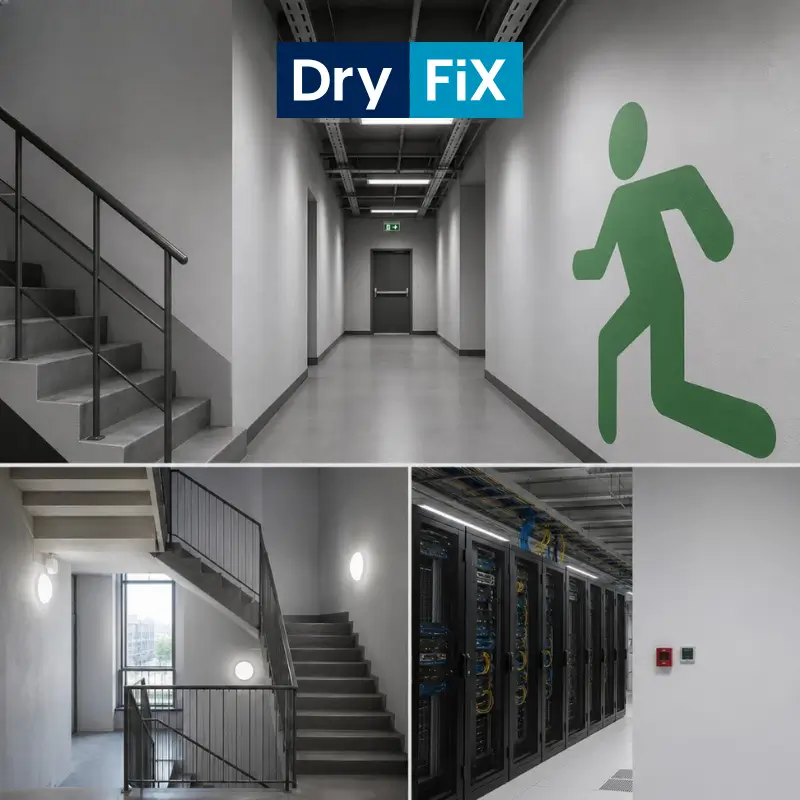

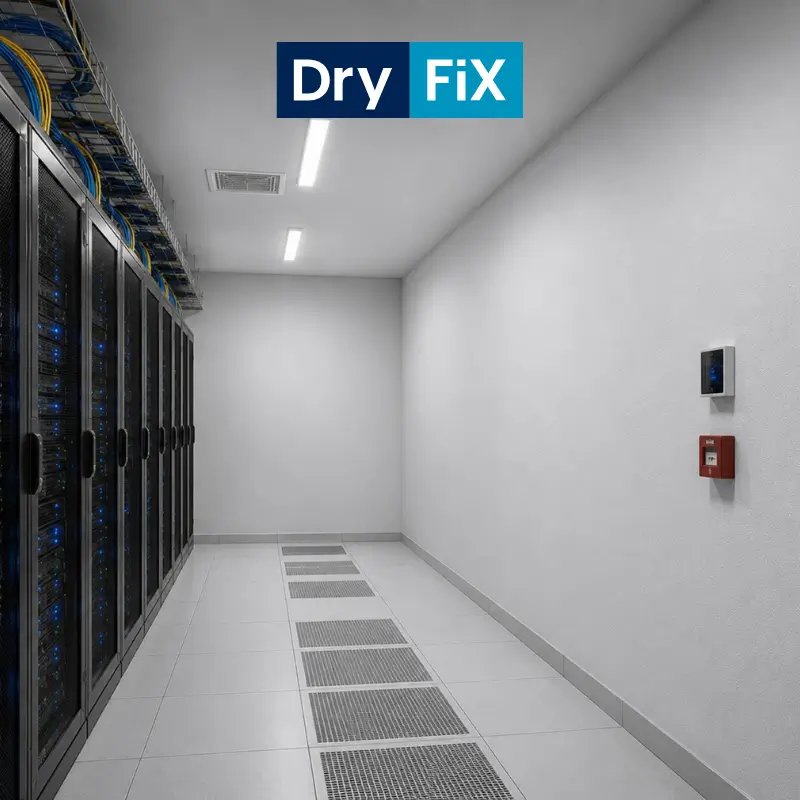

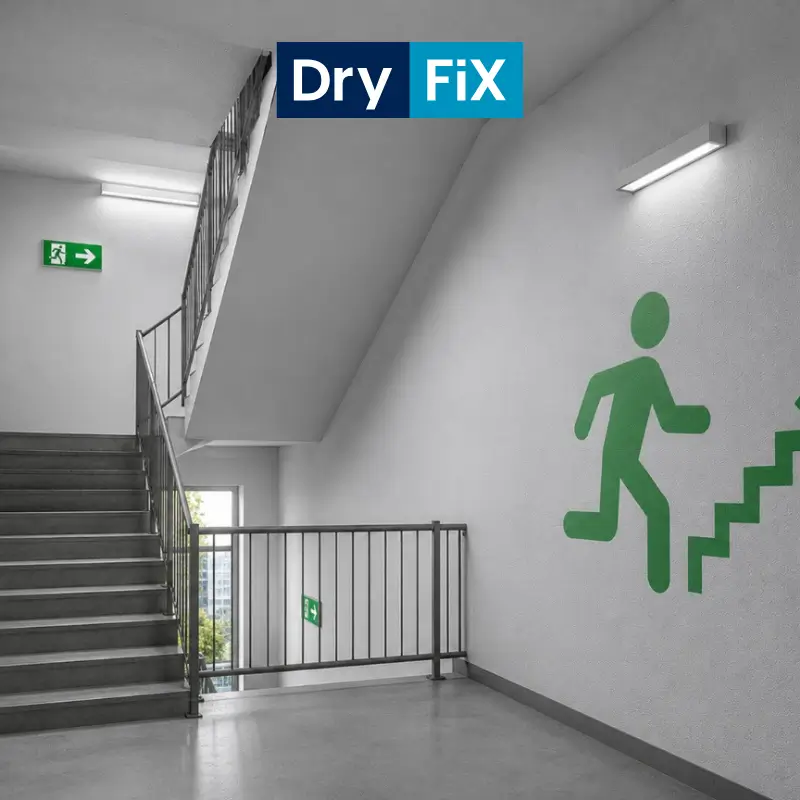

Application Photos
